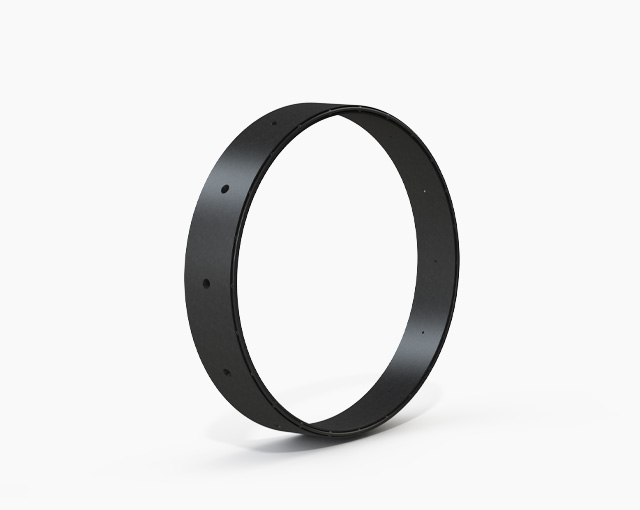

Oil Spray Ring | Fluid Guide

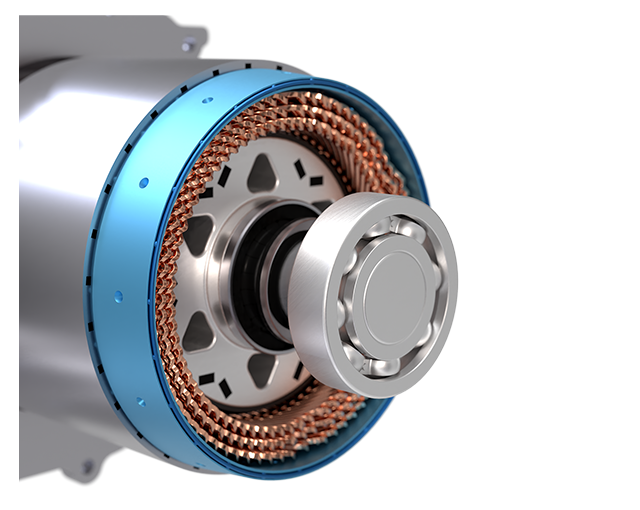

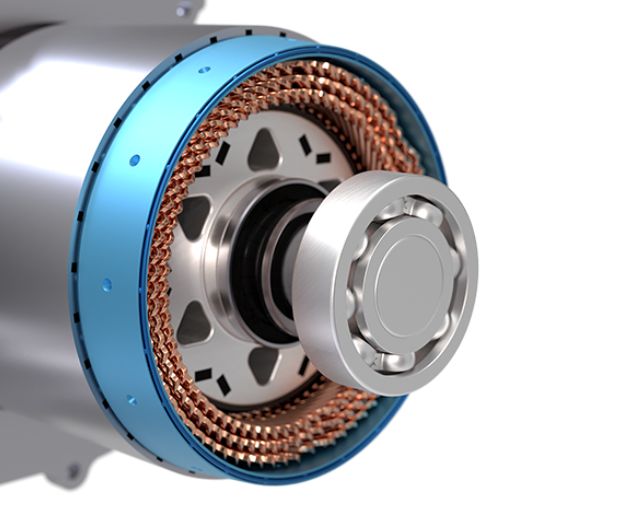

Oil spray rings, made from high-performance materials, contribute to optimal cooling of electric motors. By being sprayed directly onto the copper windings, the dielectric oil dissipates heat more quickly.
They provide this spray while ensuring watertightness. Our expertise in innovative materials and fluid management allows us to optimize performance, increasing torque and power density, while extending the life of the motor.
Main Benefits
Higher torque and power density
Weight reduction
Extended service life
Key features
Applications
Oil spray rings play a key role in cooling high-end electric motors
- Automotive
- Trucks and Off-Road
- Industrial Motors
Characteristics
- Materials compatible with dielectric fluids
- Multi-material design
- Tight tolerances enabled by advanced injection-molding expertise
- Resistance to high temperatures (150-180°C)
- Cooling of the stator's outer diameter and the ends of the stator winding
Strengths
- Expertise in sealing and fluid transfer
- Development of innovative materials
- Custom design
