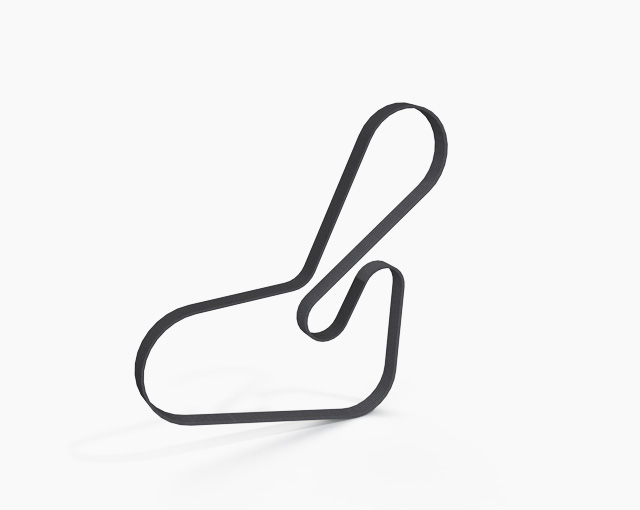

Poly V belt

HUTCHINSON® Poly V is a power a transmission belt for FEAD of cars. With multiple longitudinal ribs Poly V transmits torque by contact between the belt rib flanks and the pulley grooves.

Main Benefits

Increased durability
Optimized structure
Tested and proven performance

Characteristics

Belt Structure

High manufacturing quality:

Formed by molding, the ribs drive the pulley by contact pressure in the grooves. They are made of an EPDM rubber base with high resistance to mechanical stress and environmental influences.
Depending on the application, our range of rib layer surfaces provides the right solution for every required noise level
Polyester (PET) cord is suitable for most applications and Aramid cord cable is the standard for most severe applications. Its high modulus improves NVH behaviors outside of the usual criteria
The back of the belt provides contact with the idlers and can also transmit power on flat pulleys. It protects the cords and ensures the radial stability of the structure.

Performances

Molding process reducing material loss, ensuring dimensional control
Profile according to ISO9981 standard
Belt stiffness and length remain stable over time
Wide range of belt lengths and widths
Operating temperature range from -40 to +135°C
Optimized to minimize friction losses
Excellent ozone resistance
Oil & fluid resistance
Extended lifetime (240 000Km)
Capacity to endure mechanical stresses: Bending / Counter bending, Shearing
Dynamic tensions

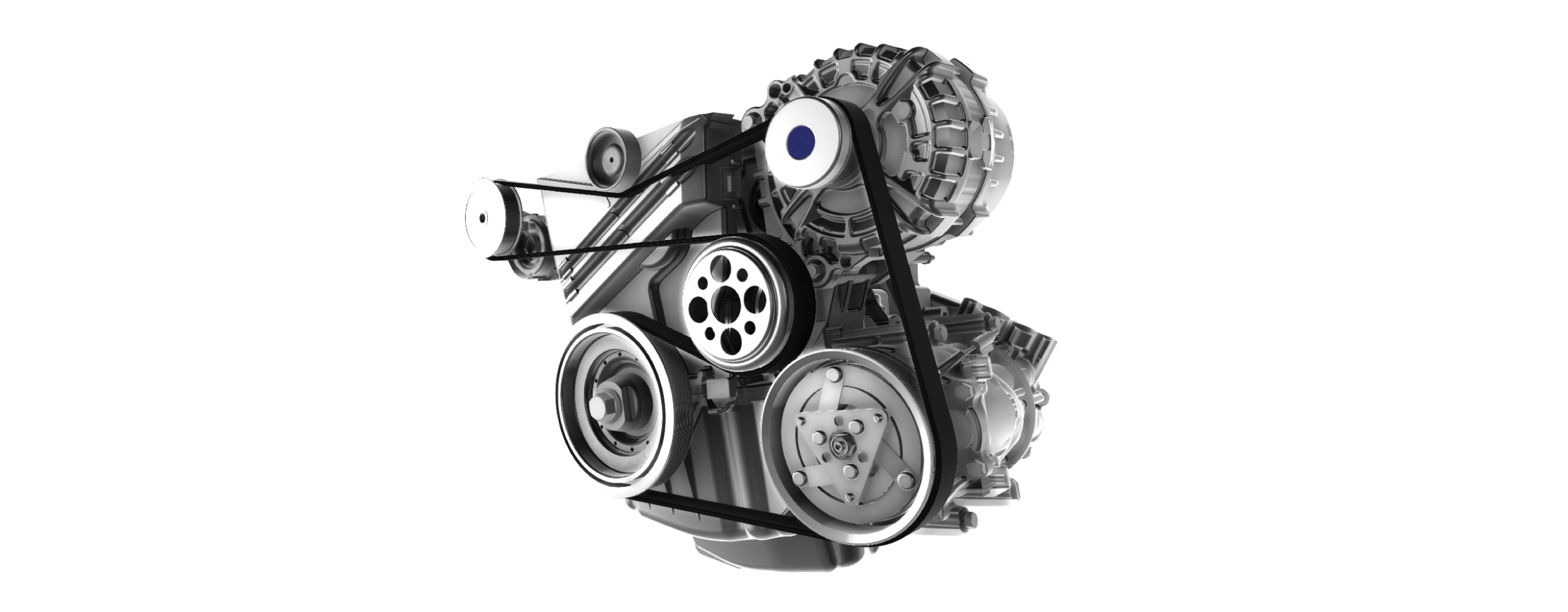

Ability to drive multiple accessories simultaneously (Alternator, A/C Compressor, Power Steering pump, Water pump, Fan)
