Grommets

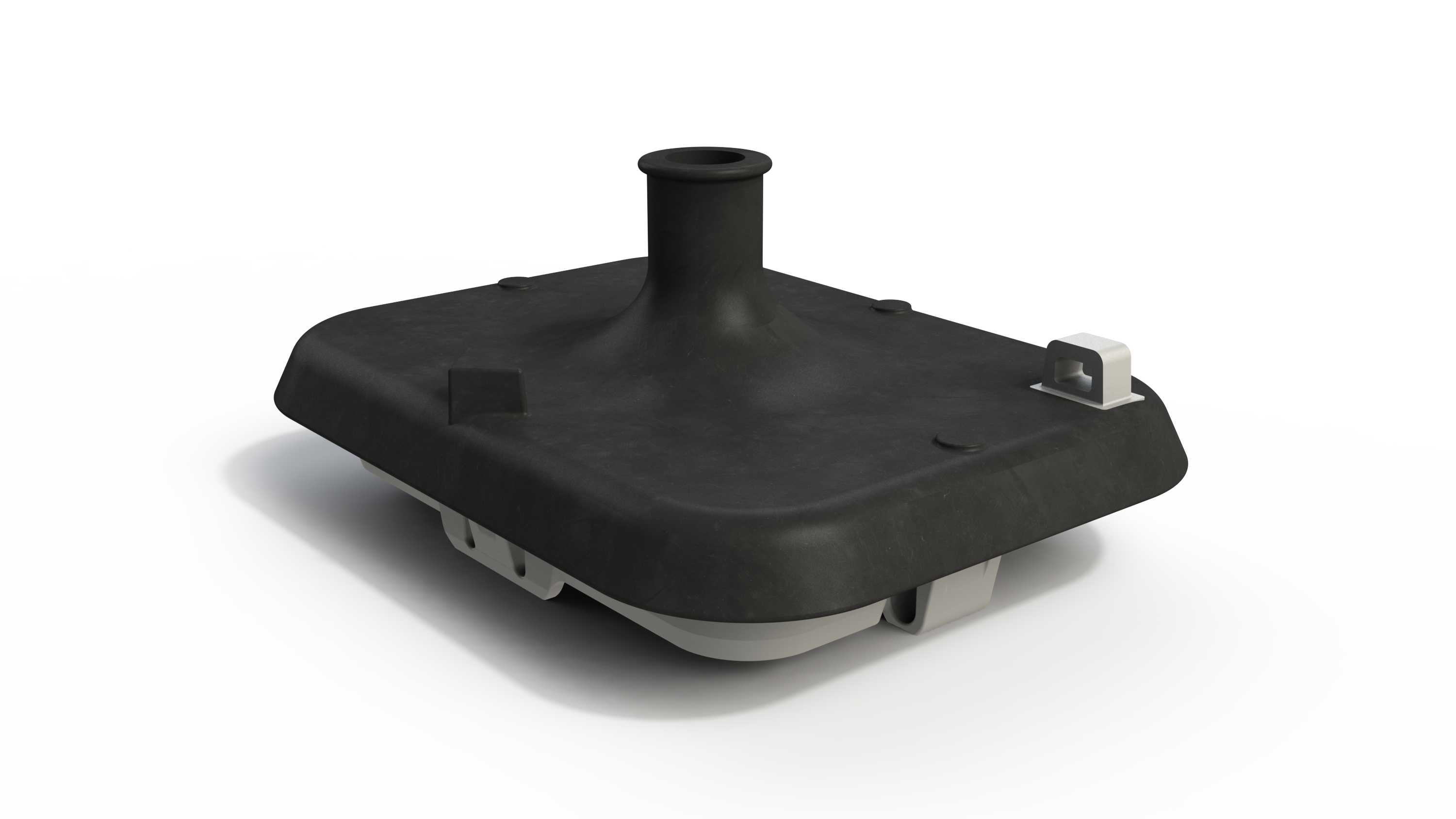

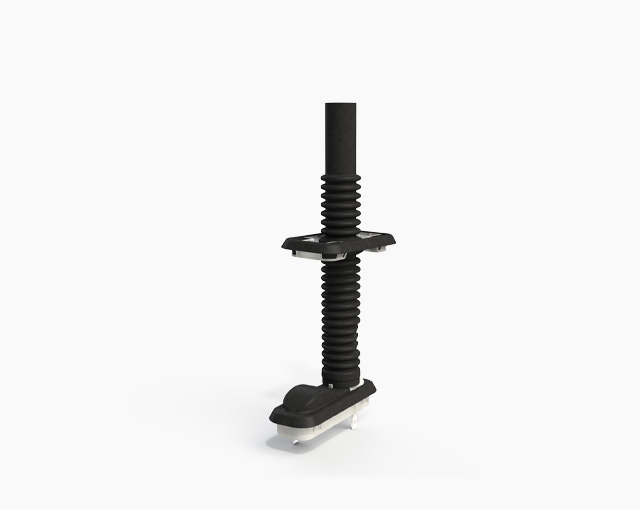

Wire grommets (made of thermoplastic, elastomer, and rubber) ensure the safe passage of harnesses through the bodywork, providing mechanical protection and insulation from smoke, air, water, dust, and noise leakage. Designed for various environments, they feature a custom design that adapts to both dynamic and static applications. They offer superior insulation, especially for high-voltage electric vehicles.

Main Benefits

Turnkey solutions: from design to production: including validation
Flexible and adaptable solutions for each environment
Reliable performance in harsh conditions

Key features

Applications

Car body
Trunk
Doors
High voltage applications (customizable colored compounds for parts differentiation)
Critical applications requiring reliable and safe operation

Characteristics

Temperature range: -40°C / +80°C (up to 100°C with adapted TPV materials and 150°C with rubber)
High elongation in TPV and in rubber : 350% - 500%
IP-67: dust and water resistant
Different configurations : Full Rubber solutions, Full Rubber Solutions + TP inserts assembly, 2K TP-TPV/TP

Strengths

Improved standardization for OEMs
Modular and cost-efficient
Guarantees reliable and safe operation for critical applications through validation processes
Product version with Hutchinson eco-label Resolutions® and Revea® for materials
