- Fuel

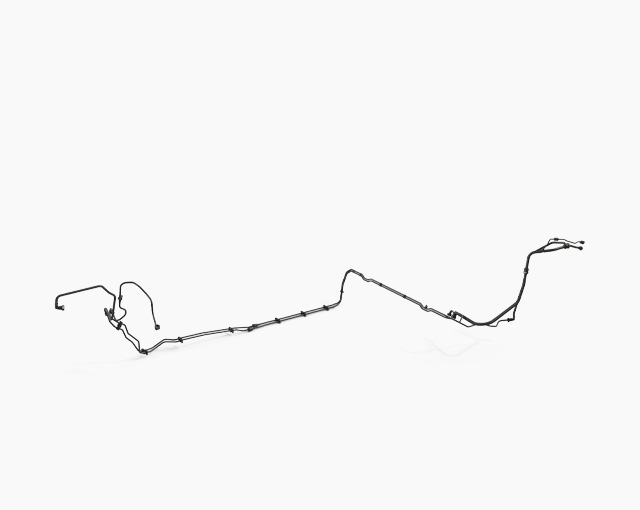

Fuel lines underbody
- Fuel
Fuel lines underbody
Our feed line connects the fuel tank pump with the engine pump. Our vapor line connects fuel tank valves with carbon canister and carbon canister with the air manifold.
Main Benefits
Conductive material for avoiding ESD on feed line
Low permeability structures on both feed and vapor lines
Low oligomer contents
Technical characteristics
Description
Assembly of multilayer plastic lines with metal pipes sections on dash panel.
- Temperature and pressure sensors on the feed line
- Quick connectors with ESD protection on all extremities with double lock system on feed line
Functional information
- Working pressure 6 bar; peak 11 bar
- Working Temperature from -40°C to 130°C
- Chemical resistance up to E100 fuel
Materials
- Barrier layer: Semiaromatic polyammides or EVOH solutions
- Other layers: PA6 or PA12 std; PA11 or PA12 ESD
Enhanced performance
Leak free
Robust design
Automotive
